AgriDrones

DJI

Agras T100

DJI's flagship agricultural platform, carrying a 100 L spray tank, a 150 L spreading hopper or a 100 kg lifting rig on an eight-rotor airframe.

Current model

View on ag.dji.com

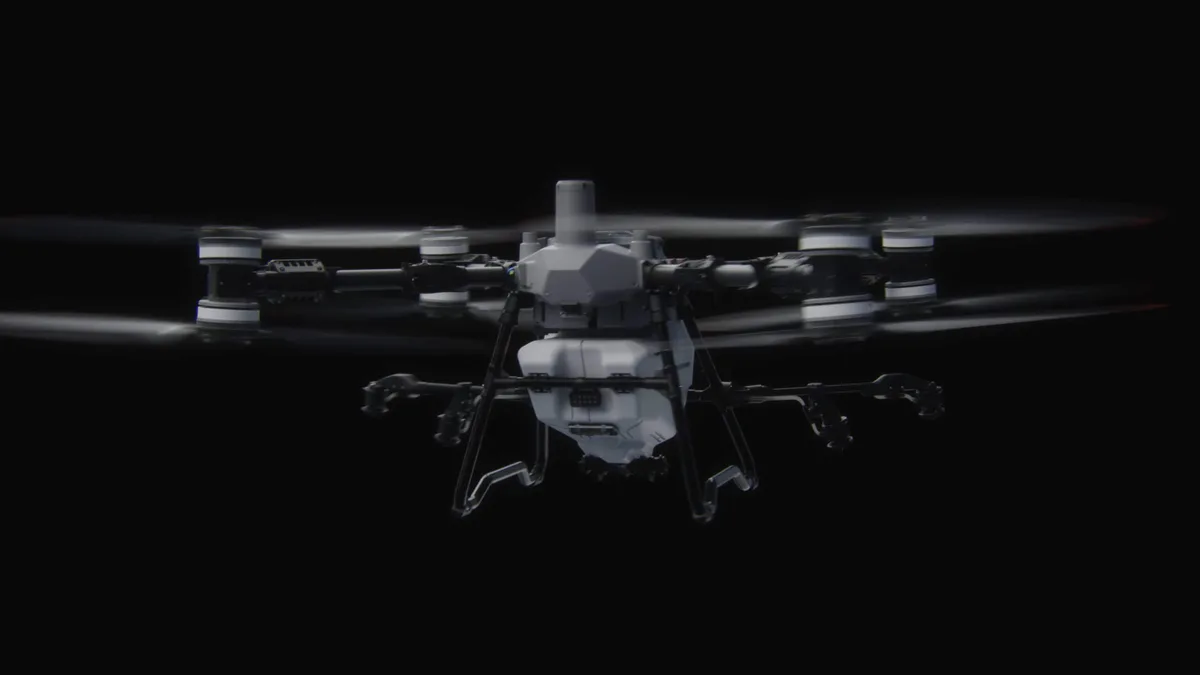

DJI Agras T100, manufacturer photograph

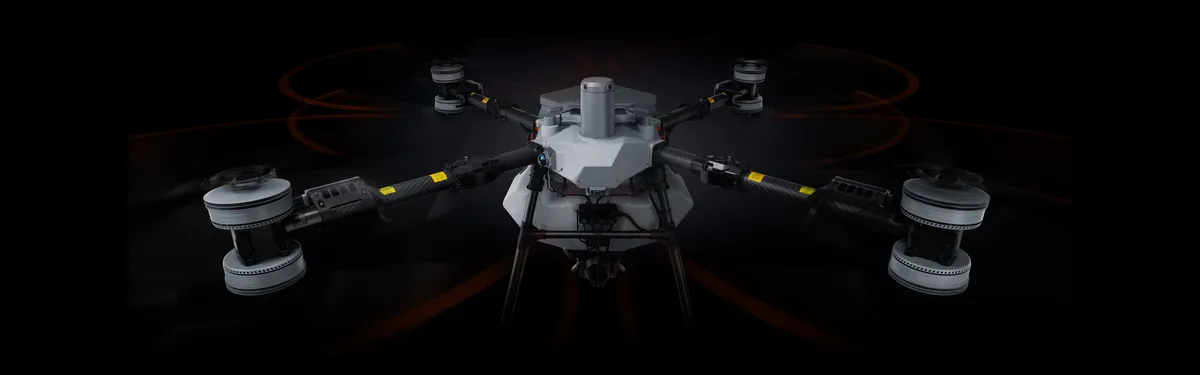

DJI Agras T100, manufacturer photograph
DJI Agras T100, manufacturer photograph
DJI Agras T100, manufacturer photograph

Photographs: DJI, from the manufacturer's product pages. Used with permission for editorial coverage.

Specifications

Every figure below is rendered directly from our source file, so this table cannot drift from what we verified. The source and check date sit alongside each value.

SpecificationValueSourceChecked
Aircraft
Weight75 kg spraying (2 nozzles); 77 kg spraying (4 nozzles); 75 kg spreading; 65 kg lifting; 90 kg dual-battery liftingag.dji.com
Max Takeoff Weight Spraying175 kg — standard 2 nozzles; 177 kg with the optional 4ag.dji.com
Max Takeoff Weight Spreading175 kgag.dji.com
Max Takeoff Weight Lifting165 kg (lifting system); 170 kg (dual-battery lifting system)ag.dji.com
Max Diagonal Wheelbase2330 mmag.dji.com
Dimensions3220×3224×975 mm (arms and propellers unfolded); 1820×1840×975 mm (arms unfolded, propellers folded); 1105×1265×975 mm (both folded)ag.dji.com
Hovering AccuracyRTK enabled — ±10 cm horizontal, ±10 cm vertical; RTK disabled — ±0.6 m horizontal, ±0.3 m verticalag.dji.com
Max Configurable Flight Radius2 kmag.dji.com
Operating Temperature0 to 40 °Cag.dji.com
Max Wind Resistance<6 m/sag.dji.com
Propulsion
Motor Stator Size155×16 mmag.dji.com
Motor Kv60 rpm/Vag.dji.com
Rotor Configuration8 pairs of 62-inch propellers, carbon fibre compositeag.dji.com
Spraying system
Spray System ModelLS100 — 880×870×810 mm rod folded; 1020×1930×810 mm unfoldedag.dji.com
Spray Tank Capacity100 L — HDPE, operating payload 100 kgag.dji.com
Sprinkler ModelLX07550SX standard ×2, or LX09550SX mist ×4 optional — nozzle distance 1834 mmag.dji.com
Droplet Size50–500 μmag.dji.com
Spray Width5–13 mag.dji.com
Max Flow Rate40 L/min — four optional nozzles; 30 L/min with the standard twoag.dji.com
Delivery Pumps2 × impeller pump (magnetic drive)ag.dji.com
Dual Battery Spray SystemLS100-DB — 100 L tank, 90 kg operating payloadag.dji.com
Spreading system
Spreading Tank Capacity150 L — maximum 100 kg inside the operation boxag.dji.com
Spreader TypeCentrifugal disc, screw-feeder dischargeag.dji.com
Max Discharge Rate400 kg/min — compound fertiliserag.dji.com
Spread Width3–10 mag.dji.com
Compatible Material DiameterExtra-large auger 0.5–10 mm (fertiliser, wheat, feed); medium auger 4–6 mm (rice); optional large auger 4–10 mm; optional small auger 0.5–4 mm (rapeseed, granular herbicides)ag.dji.com
Lifting system
Lifting Capacity100 kg (lifting system); 80 kg (dual-battery lifting system)ag.dji.com
Lifting Cable10 m standard, 10–15 m recommended — dual-battery variant adds cable-fuse disconnection escapeag.dji.com
Sensing
Sensing Measurement Range≤60 m — Safety System 3.0ag.dji.com
Obstacle Avoidance Speed≤13.8 m/s — effective avoidance height ≥1.5 m; safe distance 2.5 m after brakingag.dji.com
Sensing Field Of ViewLaser radar 272° vertical / 60° horizontal; front radar 360° horizontal, ±45° vertical; downward radar ±12.5° / ±22.5°; rear radar ±45°; quad vision 360° horizontal, 180° vertical; FPV camera ±86° / 108°ag.dji.com
Battery and charging
BatteryDB2160 Intelligent Flight Battery, 41000 mAh at 52 V — 14.7 ±0.3 kgag.dji.com
Battery Charge Time8–9 minutes — DB2160 from 30% to 95%, on either the generator or the C12000ag.dji.com
GeneratorD14000iE inverter generator — DC 42–61.6 V / 11500 W, 30 L fuel, 87 ±0.5 kg — unleaded RON ≥91 under 10% alcohol; approx. 500 mL/kWh; SJ 10W-40 oil, 1.3 Lag.dji.com
Mains ChargerC12000 (CSX901-12000) — 12000 W on three-phase 380 V, 3000 W on single-phase 220 V — 456×291×107 mm, 13.13 kg; output 62 V, 194 A ratedag.dji.com
Remote controller and RTK
Remote ControllerTKPL 2, 7-inch 1920×1200 LCD at 1400 cd/m²ag.dji.com
Controller Battery Runtime3.8 h internal; 3.2 h external — charges in 2 hours via 65 W USB-C with the controller powered offag.dji.com
Relay8 km (FCC), 5 km (SRRC), 4 km (MIC/KCC/CE), 5 h operating time, IP55 — 630 g, 6500 mAh, charges in 2.5 hag.dji.com
Rtk ModuleD-RTK 3 AG — 15 km (FCC), 12 km (SRRC), 8 km (CE/JP), 7 h operating time, IP67 — GPS L1/L2/L5, BeiDou B1I/B2I/B3I/B1C/B2A/B2B, Galileo E1/E5a/E5b/E6, GLONASS G1/G2, QZSS, L-BANDag.dji.com
Rtk Positioning AccuracyNetwork RTK — 0.8 cm + 1 ppm horizontal, 1.5 cm + 1 ppm vertical (RMS); PPP satellite service — 30 cm horizontal, 40 cm elevation (RMS), 20 min convergenceag.dji.com

What these figures mean in practice

Our reading of the specifications above. These are not manufacturer claims — every number below is derived from the table, and the trade-offs are ours.

A hundred litres is two and a half minutes of spraying

At the optional four-nozzle rate of 40 L/min the tank is empty in two and a half minutes; on the standard two nozzles and 30 L/min it lasts three minutes twenty. That is the design argument for this machine in one line — it is not built to stay up longer, it is built to put more out per pass, which only pays back if the ground crew can refill and swap batteries fast enough to keep up with it.

The spreader empties in fifteen seconds

Maximum discharge is 400 kg/min against a 100 kg limit inside the operation box, so the hopper goes from full to empty in about fifteen seconds at the top rate. The 150 L capacity is therefore volume-limited for light material and mass-limited for dense fertiliser, and either way the real constraint is how fast it can be reloaded on the ground.

Three-phase power, or a generator, or four times the charge time

Each DB2160 holds 41 Ah at 52 V — about 2.13 kWh — and recharges from 30% to 95% in eight to nine minutes. The C12000 charger delivers its full 12000 W only on a three-phase 380 V supply and falls to 3000 W on single-phase 220 V, a fourfold difference that lands straight on charge time. The alternative is the D14000iE generator: another 87 kg of kit and 30 L of fuel to move between paddocks.

Payload is exactly the tank, and it will not fly below freezing

At 75 kg empty against a 175 kg maximum takeoff weight, the 100 kg allowance matches a full tank precisely with nothing spare. Note also the 0–40 °C operating range: the T50's controller is rated to -20 °C, but the T100 airframe is not specified below freezing at all, which matters for anyone planning early-season work in cold country.
