AgriDrones

DJI

Agras T70P

Four-rotor spray platform with a 70 L tank, sitting between the T55 and the flagship T100.

Current model

View on ag.dji.com

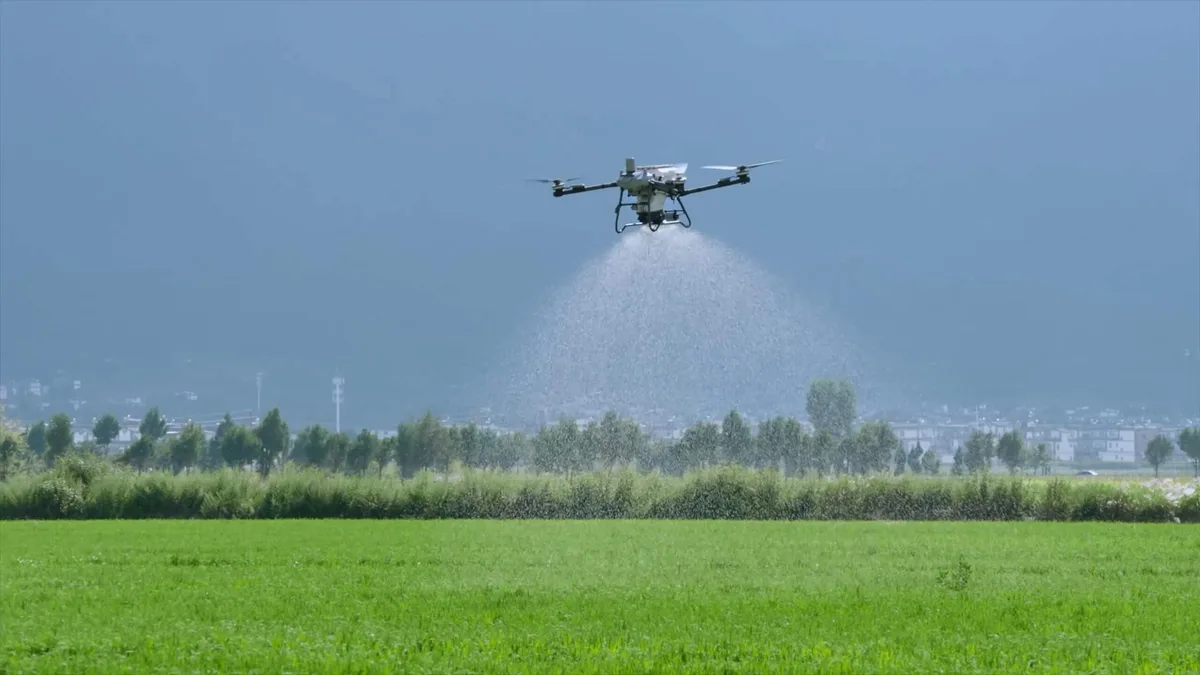

DJI Agras T70P, manufacturer photograph

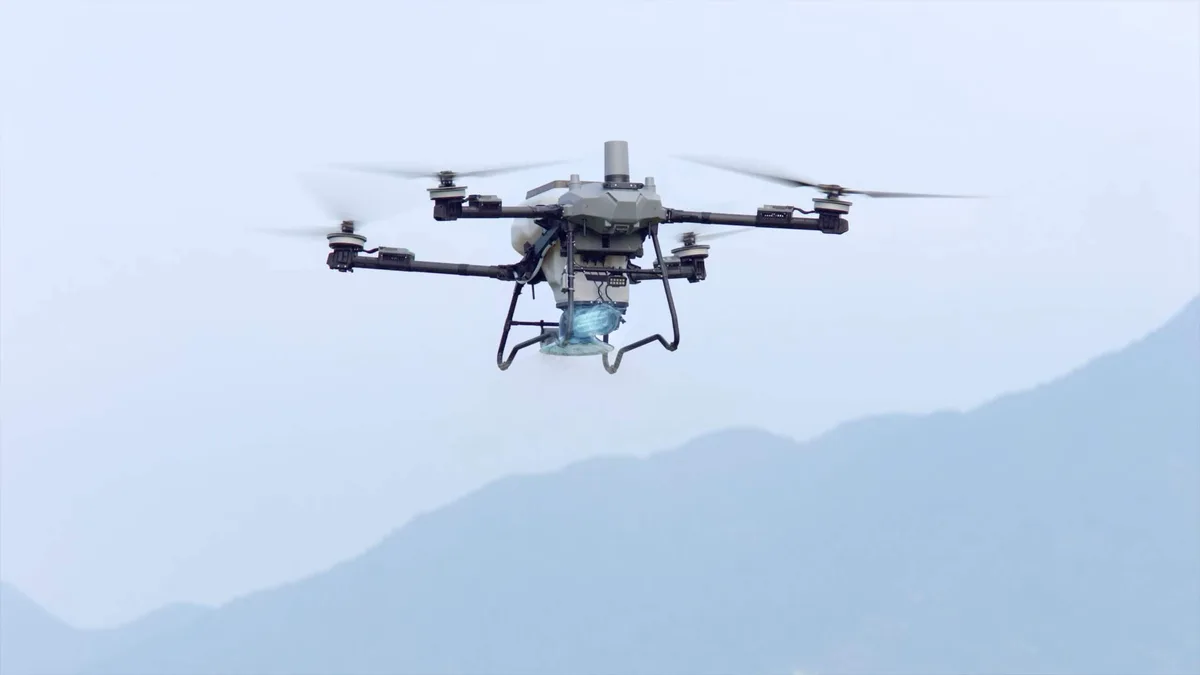

DJI Agras T70P, manufacturer photograph
DJI Agras T70P, manufacturer photograph

Photographs: DJI, from the manufacturer's product pages. Used with permission for editorial coverage.

Specifications

Every figure below is rendered directly from our source file, so this table cannot drift from what we verified. The source and check date sit alongside each value.

SpecificationValueSourceChecked
Aircraft
Weight52 kg with DB1580 battery; 56 kg with DB2160 battery — both figures include the batteryag.dji.com
Max Takeoff Weight Spraying102 kg (DB1580, 2 nozzles); 105 kg (DB1580, 4 nozzles); 126 kg (DB2160, 2 nozzles); 130 kg (DB2160, 4 nozzles)ag.dji.com
Max Takeoff Weight Spreading126 kg (DB1580); 130 kg (DB2160)ag.dji.com
Max Takeoff Weight Lifting115 kg (DB1580); 118.5 kg (DB2160)ag.dji.com
Max Diagonal Wheelbase2440 mmag.dji.com
Dimensions3200×3520×960 mm (arms and propellers unfolded); 1820×2100×960 mm (arms unfolded, propellers folded); 1160×900×960 mm (both folded)ag.dji.com
Hovering AccuracyRTK enabled — ±10 cm horizontal, ±10 cm vertical; RTK disabled — ±0.6 m horizontal, ±0.3 m vertical — with strong GNSS signalag.dji.com
Max Configurable Flight Radius2 kmag.dji.com
Operating Temperature0 to 40 °Cag.dji.com
Max Wind Resistance<6 m/sag.dji.com
Propulsion
Motor Stator Size155×22 mmag.dji.com
Motor Kv65 rpm/Vag.dji.com
Rotor Configuration4 propellers, 62 inch, carbon fibre compositeag.dji.com
Spraying system
Spray Tank Capacity70 L — HDPE, operating payload 70 kgag.dji.com
Sprinkler ModelLX07550SX standard ×2, or LX09550SX mist ×4 optional — rear nozzle distance 1874 mmag.dji.com
Droplet Size50–500 μmag.dji.com
Spray Width4–11 mag.dji.com
Delivery Pumps2 × impeller pump (magnetic drive)ag.dji.com
Max Flow Rate40 L/min — four optional nozzles; 30 L/min with the standard twoag.dji.com
Spreading system
Spreading Tank Capacity100 L — maximum 70 kg inside the operation boxag.dji.com
Spreader TypeCentrifugal disc, feeder dischargeag.dji.com
Max Discharge Rate400 kg/min — compound fertiliserag.dji.com
Spread Width3–10 mag.dji.com
Compatible Material DiameterExtra-large auger 0.5–10 mm (fertiliser, wheat, feed); medium auger 4–6 mm (rice); optional large auger 4–10 mm; optional small auger 0.5–4 mmag.dji.com
Lifting system
Lifting Capacity65 kg — 10 m cable standard, 10–15 m recommendedag.dji.com
Sensing
Sensing Measurement Range≤60 m — Safety System 3.0; millimetre-wave radar EIRP <20 dBmag.dji.com
Obstacle Avoidance Speed≤13.8 m/s — effective avoidance height ≥1.5 m; safe distance 2.5 m after brakingag.dji.com
Sensing Field Of ViewFront radar 360° horizontal, ±45° vertical, ±45° upward cone; rear radar 360° vertical, ±45° horizontal; tri-eye vision 90° horizontal, 180° verticalag.dji.com
Battery and charging
BatteryDB1580 — 30000 mAh at 52 V, 11.7 ±0.3 kg; or DB2160 — 41000 mAh at 52 V, 14.7 ±0.3 kgag.dji.com
Battery Charge Time7–8 minutes (DB1580); 8–9 minutes (DB2160) — 30% to 95%, on either the generator or the C12000ag.dji.com
GeneratorD14000iE inverter generator — DC 42–61.6 V / 9650 W, 30 L fuel, 87 ±0.5 kg — unleaded RON ≥91 under 10% alcohol; approx. 500 mL/kWh; SJ 10W-40 oil, 1.3 Lag.dji.com
Mains ChargerC12000 (CSX901-12000) — 12000 W on three-phase 380 V, 3000 W on single-phase 220 V — 456×291×107 mm, 13.13 kg; output 62 V, 194 A ratedag.dji.com
Remote controller and RTK
Remote ControllerTKPL 2, 7-inch 1920×1200 LCD at 1400 cd/m²ag.dji.com
Controller Battery Runtime3.8 h internal; 3.2 h external — charges in 2 hours via 65 W USB-C with the controller powered offag.dji.com
Relay8 km (FCC), 5 km (SRRC), 4 km (MIC/KCC/CE), 5 h operating time, IP55 — 630 g, 6500 mAh, charges in 2.5 hag.dji.com
Rtk ModuleD-RTK 3 AG — 15 km (FCC), 12 km (SRRC), 8 km (CE/JP), 7 h operating time, IP67 — GPS L1/L2/L5, BeiDou B1I/B2I/B3I/B1C/B2A/B2B, Galileo E1/E5a/E5b/E6, GLONASS G1/G2, QZSS, L-BANDag.dji.com
Rtk Positioning AccuracyNetwork RTK — 0.8 cm + 1 ppm horizontal, 1.5 cm + 1 ppm vertical (RMS); PPP satellite service — 30 cm horizontal, 40 cm elevation (RMS), 20 min convergenceag.dji.com

What these figures mean in practice

Our reading of the specifications above. These are not manufacturer claims — every number below is derived from the table, and the trade-offs are ours.

The battery choice changes the aircraft, not just the endurance

Fitting the larger DB2160 instead of the DB1580 raises maximum takeoff weight for spraying from 102 kg to 126 kg — a 24 kg swing — while adding only 4 kg to the airframe. That is the unusual part of this model: the battery is a capacity decision as much as an endurance one, and the two packs are not interchangeable in the way a spare normally is.

Four rotors carrying seventy litres

The T70P puts a 70 L tank on four 62-inch propellers, where the T100 uses eight of the same size for 100 L. Fewer, harder-worked rotors at 65 rpm/V on a 155×22 mm stator, and a 2440 mm wheelbase that is actually wider than the T100's 2330 mm. Folded it is 1160×900 mm, which is the figure that decides whether it fits the trailer you already own.

Seventy litres in a minute forty-five

At the optional four-nozzle rate of 40 L/min the tank empties in one minute forty-five; on the standard two nozzles and 30 L/min it lasts two minutes twenty. Spreading is starker still — 400 kg/min against a 70 kg box limit is about ten seconds of discharge.

Same charging problem as the T100

The C12000 gives its full 12000 W only on three-phase 380 V and drops to 3000 W on single-phase 220 V. With two battery sizes in play the charge window is seven to nine minutes on adequate supply, and roughly four times that without it. Anyone running this machine off farm single-phase should budget for the D14000iE generator rather than treating it as optional.
