What NDVI drones measure and what they do not

NDVI drones in one sentence: they measure vegetation “greenness” from multispectral light

An NDVI drone records light in several spectral bands. Software then analyses those images to calculate vegetation index values.

That makes NDVI a derived measure, not a direct sample of the plant. It shows how vegetation responds across selected parts of the light spectrum. Operators often describe the result as a measure of “greenness”.

One documented agricultural platform presents this output through a feature called Live NDVI View. Its maker links the view with quick insight into plant health and vegetation management.

The key word is insight. An NDVI map can point to crop variation, but it does not explain the cause on its own.

What your NDVI data is actually measuring

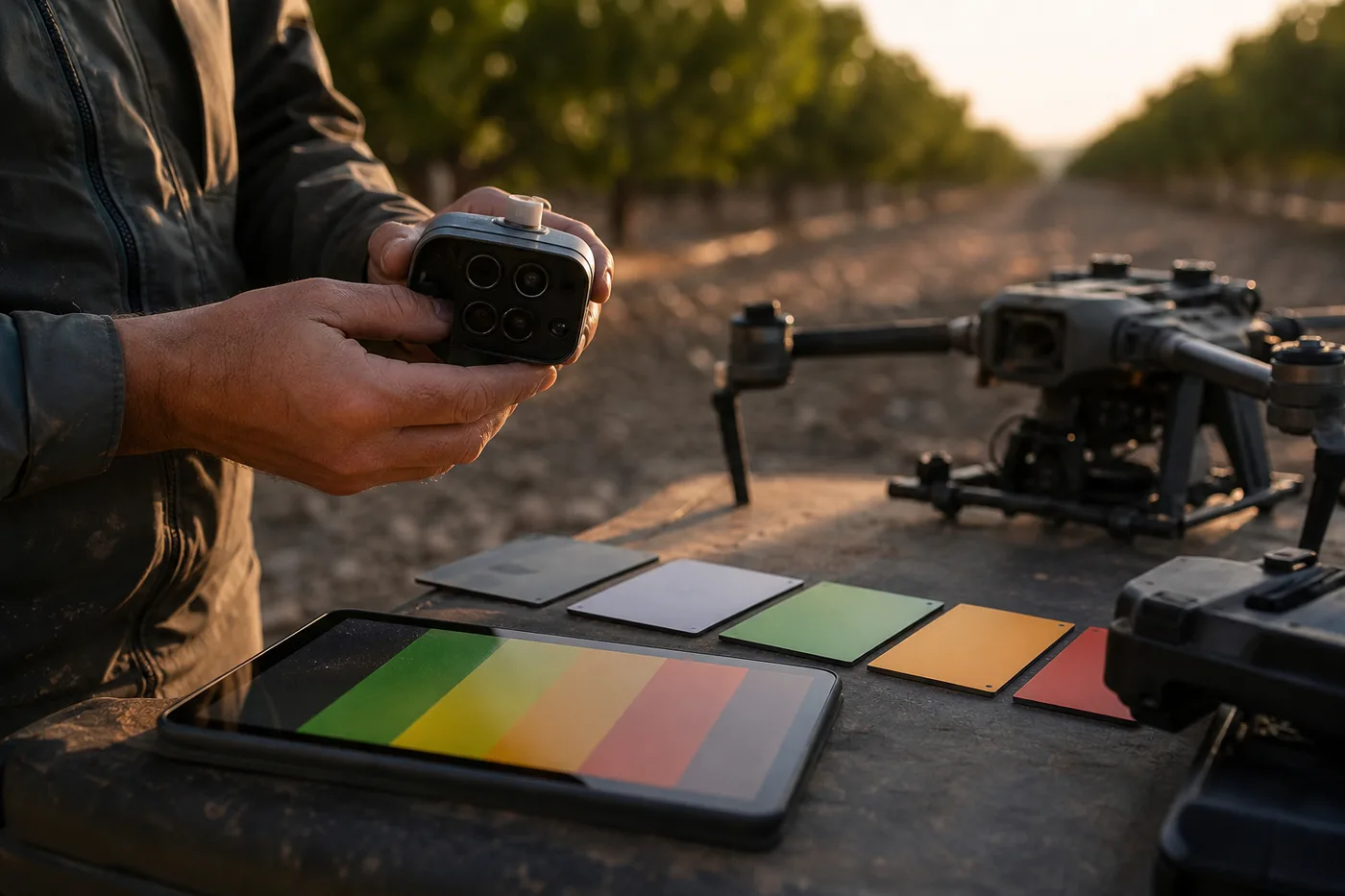

A multispectral imaging system captures separate images across different wavelengths. The documented agricultural system in the research covers blue, green, red, red edge and near-infrared bands.

Each camera records the light detected in its band. The system analyses those records to calculate vegetation index values. NDVI is a common index used for plant health work in agriculture and forestry.

This process has three distinct layers:

• The cameras collect spectral image data.
• Processing turns that data into vegetation index values.
• The operator interprets the resulting map in its field context.

Keeping those layers separate prevents a common mistake. The camera does not photograph “health” as a direct physical property. It photographs spectral data from which the index is derived.

The image pixels are not the final agronomic answer

The documented system stores DN values in its image pixels. Its images pass through radiometric calibration when processed with the vegetation index tools named in the manufacturer’s FAQ.

This distinction matters because a raw pixel value and an agronomic conclusion are not the same thing. Processing creates an index map, while field knowledge gives the map meaning.

The same FAQ says the original images are not corrected for lens distortion. Instead, the measured correction parameters are recorded within each image. It gives the same account for vignetting correction.

These details are worth checking when comparing systems through our drone specifications section. “Multispectral” alone does not tell you how a system records, calibrates or processes its data.

Light conditions are part of the measurement chain

Changing sunlight can affect spectral image capture. The documented platform uses a spectral sunlight sensor to compensate for sunlight received at different times of day.

The stated aim is to improve consistency when the same field is captured under different light conditions. That is a data-quality step, not proof that every change between maps comes from the crop.

Operators still need to ask how each image set was collected and processed. A coloured map can look clear even when its collection method is poorly controlled.

What NDVI drones do well in the field

NDVI is well suited to finding spatial variation. A map can show where the index is lower or higher across a crop, helping the operator split the field into zones.

Those zones can guide scouting. Instead of choosing field checks without an overview, the operator can use the imagery to place sample points in contrasting areas.

A documented cotton case shows this workflow. A multispectral drone captured imagery that was processed into RGB maps and vegetation indices, including NDVI. The grower then used the growth map to divide fields into zones and choose sites for closer inspection.

That sequence is sound because the map did not replace field work. It directed the field work.

Monitoring crop growth

NDVI maps can also support repeat monitoring. The manufacturer’s wheat material describes low-index areas as signs of poor growth or failed germination, while high-index areas show stronger growth and germination.

Those statements are map interpretations within a crop workflow. They should not be read as a universal diagnosis for every low or high value.

The useful output is the pattern. An operator can look for weak patches, sharp boundaries and changes between surveys. Those areas can then be checked against what is happening on the ground.

This can make scouting more focused than relying only on scattered manual samples. It also gives the agronomist a field-wide image rather than a view limited to the points visited on foot.

Building management zones

The cotton case used an NDVI growth map to show variation across the whole field. That variation guided the placement of later samples.

The same case also used the map as the basis for prescription work. Areas with over-growth received a spray rate, while other areas were left as non-spray zones. Later in the crop, the grower created a prescription for foliar fertiliser aimed at weaker regions.

This does not mean NDVI itself sprayed the field or chose the treatment. The index map informed a separate prescription process, which then fed a separate application task.

That distinction matters when buying equipment. Imaging, map creation and field treatment may involve different systems and different support limits. Our guides index covers the wider workflow questions that sit around the aircraft itself.

What NDVI drones do not measure directly

An unusual index value may help locate an area of concern, but the research does not show NDVI naming a pathogen or proving why the crop changed.

Crop growth patterns may be useful when making field decisions, but an index map is not a harvested yield record.

This is why an NDVI map should be treated as an indicator. It tells the operator where the crop’s spectral response differs, not why that difference exists.

A low value is a prompt, not a verdict

A low-index patch may justify an inspection. The operator can then check emergence, crop growth and visible signs of pests or disease.

The map alone cannot choose among those causes. That step needs field evidence and agronomic judgement.

The same caution applies to high-index areas. A stronger index can mark robust growth in the wheat example, but the number does not by itself prove that every part of the crop is healthy.

The most useful question is not, “What diagnosis has the drone made?” It is, “Where should we look, sample or compare next?”

Interpreting Live NDVI View without overextending the claim

Live NDVI View gives the operator an immediate way to see an index-based presentation. The manufacturer links it with insight into plant health and vegetation management.

“Live” describes how the view is presented. It does not change what NDVI measures. The displayed result still comes from multispectral light data and index calculation.

Operators should therefore use the view for rapid orientation. It may flag zones worth checking while the team is still working near the field.

It should not be treated as a lab result. If a management choice depends on the cause of a problem, the operator needs evidence beyond the colour shown on screen.

Do not confuse an imaging feature with an end-to-end treatment system

A live index view is not the same as support for every farm task. The FAQ for the documented platform says Fruit Tree Mode is not supported.

The same FAQ says the platform is not supported for variable spraying with the named spray systems in that document. Yet a separate cotton case describes NDVI maps being used to make prescription files for another aircraft.

Both statements can be true. An index map may feed a wider workflow, while direct links between particular tools remain unsupported.

Buyers should check the whole data path. A useful NDVI view does not guarantee that the map can move straight into the sprayer, spreader or farm software they already use.

Buyer’s caution checklist for NDVI drones

Start with the imaging method. Confirm that the system captures multispectral imagery and calculates vegetation index values from it.

Then check what the seller means by NDVI support. A live view, a processed map and a prescription-map workflow are different things.

Ask the supplier to show:

• Which spectral bands the cameras capture.
• What values the original image pixels store.
• How radiometric calibration works.
• How changing sunlight is handled.
• Whether lens and vignetting correction data are available.
• Which software creates the vegetation index map.
• Whether maps can be exported into the tools used on the farm.
• Which flight, mapping and treatment modes are not supported.

Also ask how the operator will check results in the field. A buying plan built only around image capture leaves out the agronomy needed to interpret the map.

Finally, define the intended decision before comparing systems. Scouting weak zones, tracking growth and making prescription maps are related jobs, but they are not identical.

NDVI earns its place by showing crop variation at field scale. Its limit is just as important: it indicates a spectral pattern, not a final diagnosis.
